Application Area:
• HPLC,UPLC,LC-MS
• ICP-MS,ICP-AES,AAS,GC-MS
• MALDI-TOF-MS,IC,TOC analysis
• Electrochemical, spectrophotometric determination
• Preparation of microbial media and reagents
• Cell culture, PCR, IVF
• Protein purification, electrophoresis, biochemistry
• Proteomics, genomics, immunoassay
• Feed water of laboratory instruments, such as: autoclave, bottle washing machine,
environmental test chamber, water bath, etc.
Main Features:

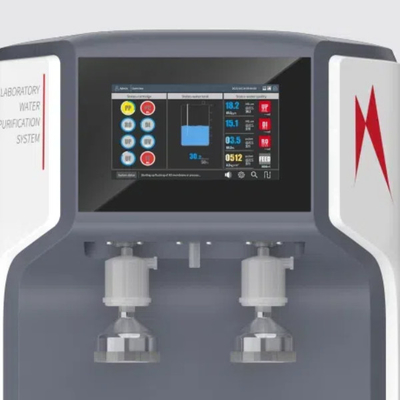

1.All new intelligent human-computer
•7 inch colorful capacitive touch screen, with glass panel,
achieve touch operation experience the same as mobile phone.
•LINUX system, resolution:1024×600, free switching in dual
language (Chinese-English) display and 3 kinds of theme
interface.
•Simple and intuitive UI interface design displays the newly
defined cartridge, storage and water quality status. So that
you can fully understand the system operating status and
parameters. A glance for all important information.
2.Innovative Internet of Things (IOT) and cloud platform technology
•Access the internet by Ethernet and WIFI, achieve remote data
acquisition, monitoring and management.
•Log into the cloud platform from PC, WAP or WeChat to get the
device information.
•Timely alarm information to achieve fast customer service
response.
•Health analysis based on big data makes fault judgment more
accurate.
•Work order system can provide customers with efficient service
guarantee.
•It can be connected to LIMS or BMS to realize equipment
informatization and make laboratory information management
more efficient and standardized.
3.Traceable comprehensive data management
•Store operating data records up to 5 years, including water
dispensing, alarm and cartridge replacement, achieve data
storage and paperless data management of the whole product
life cycle by the cloud platform, meeting data tracking needs.
•With function of data exporting from USB port and data
downloading from cloud platform.
•Data report documents in PDF format can prevent tampering,
meeting traceability provisions of data integrity.
•Function of water dispensing report, including each water
quality, water volume and user information, meet the regulatory
requirements, easier to certificate.
4.Comprehensive water quality monitoring and alarm
• 4 water quality sensors, to monitor water quality and alarm (Feed water, RO
water, DI water and UP water), electrode constant-0.01cm-1, temperature
sensitivity-0.1℃ , and the conductivity/resistivity after temperature compensation
and water temperature can be displayed simultaneously.
• 4 flow sensors, including 3 channels (RO water, DI water and UP water)
quantitative dispensing and 1 channel of feed water accumulation function.
• With real-time display and alarm function of ion rejection rate of RO membrane.
• Equipped with feed water pressure sensor, real-timely monitor and display inlet
pressure, convenient to timely understand the feed water condition.
• Built-in TOC detection module, real-timely monitor TOC of ultrapure water,
detection range: 0.5-999.9ppb, detection accuracy:±0.1ppb, in line with USP and
EP system adaptability test
